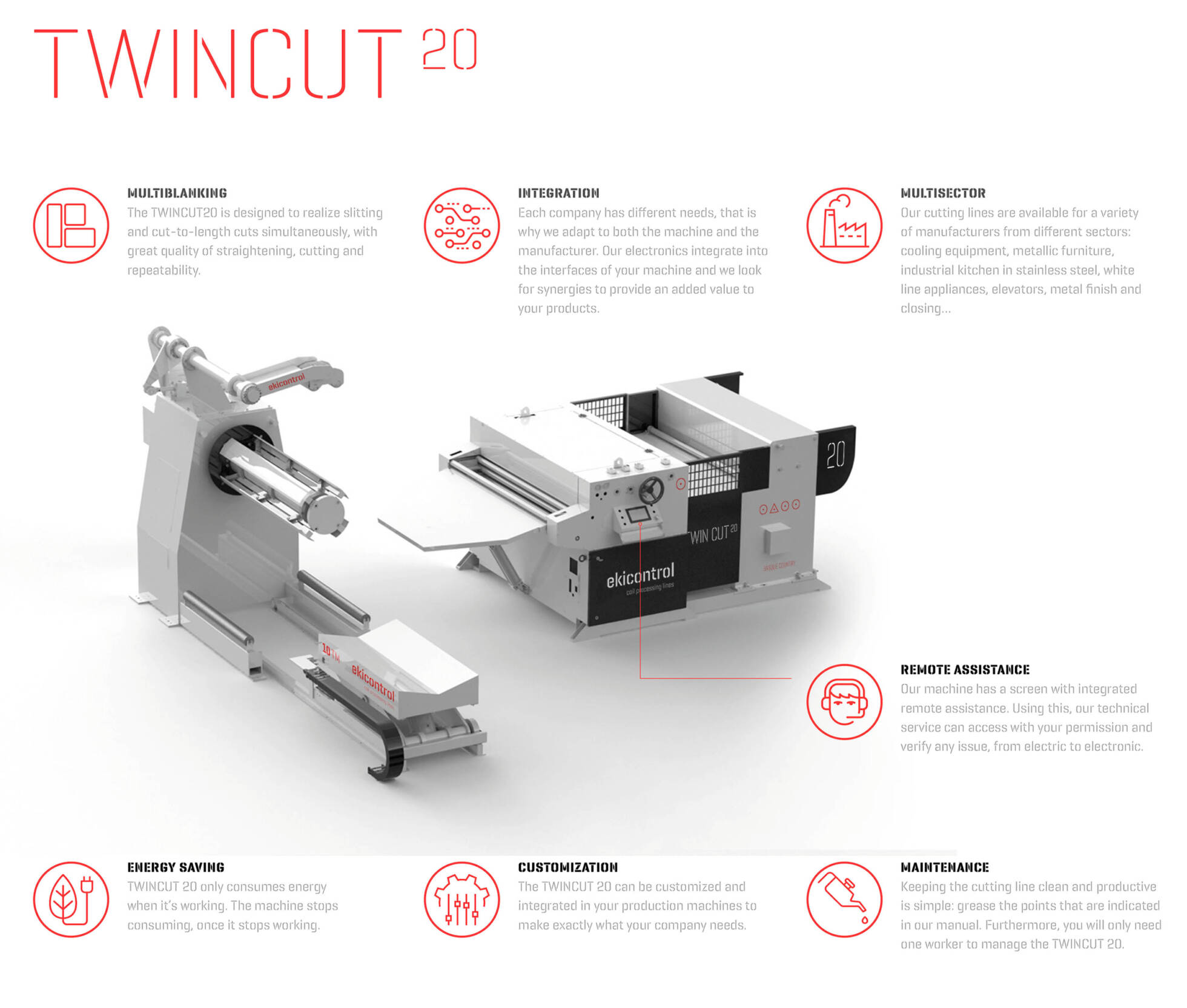

TwinCut 20

Characteristics

Model Width Thickness (mm) Coil weight (kg) No. of longitudinal cuts Cuts accuracy Straightening rolls Speed
TwinCut 20 DM6 1.000 - 1.250 - 1.500 mm 0,5 – 2 6.000 3-6 ±0’5 mm 2 + 7 20 m/min
TwinCut 20 DM10 10.000
TwinCut 20 DM15 15.000

equipment

Standard

  • Uncoiler
  • Coil car
  • Pneumatic introduction table
  • Entrance guide
  • 7 roll straightening machine

A complete slitting axis of 3 circular blades

Cut-to-length shear

Servomotor drive

Optional

  • Its function is to adapt to 610mm coil inner diameters
  • With these additional tiles the mandrel expands from 570 to 620 mm
  • The operator places the 8 extra tiles on the mandrel of the uncoiler
  • There are 2 additional tiles per mandrel tile
  • The placement is manual and very comfortable
  • Support with shaft
  • Cones adjustable to the width of the film coil
  • Uncoiling with manual variable brake
  • The operator manually places the film coil
  • Plastic film coil is not included
  • They are placed one on each side on the cut-to-length shear
  • Mounted on two cylindrical guides that allow the operator to move them manually to center on the desired band
  • It has a 0.55 kW gear motor that rotates continuously
  • A clutch regulates the pulling force that must be applied to roll up the scrap
  • The rolled-up scrap is removed by first loosening 3 side screws and then removing the side cover to access the scrap

Beneficios de las Líneas de Corte

Ahorro en Materia PrimaMenor Espacio de AlmacenamientoMayor ProductividadCalidad de EnderezadoFlexibilidadAdaptabilidad

Más ahorro, mayor productividad, flexibilidad y calidad de enderezado son algunos de los beneficios de implementar un línea de corte.

Savings in raw materials

The purchase of coil instead of format implies an average saving of 5% in raw material cost. We make the most of the coil length, thus wasting less material. This way, we will achieve a greater benefit for our final product.

Less Storage Space

The coils take up much less space than the traditional sheet metal format. They are comfortable to store, and their handling is agile and safe.

Higher productivity

A 1-ton 1-millimeter-thick coil is 850 meters long. With an Ekicontrol cutting line, we can cut 3-meter formats in less than an hour.

Straightening Quality

The quality of the straightening of our cutting lines accomplishes with the most demanding international standards.

Flexibility

The flexibility of having the circular blades implemented in the straightener module allows us to adjust the width and make all the cuts of the coil on the same machine.

Adaptability

We can adapt all kinds of reception tables of formats: scissor tables, fixed tables, tables of different lengths, interchangeable to adapt to your manufacturing needs.

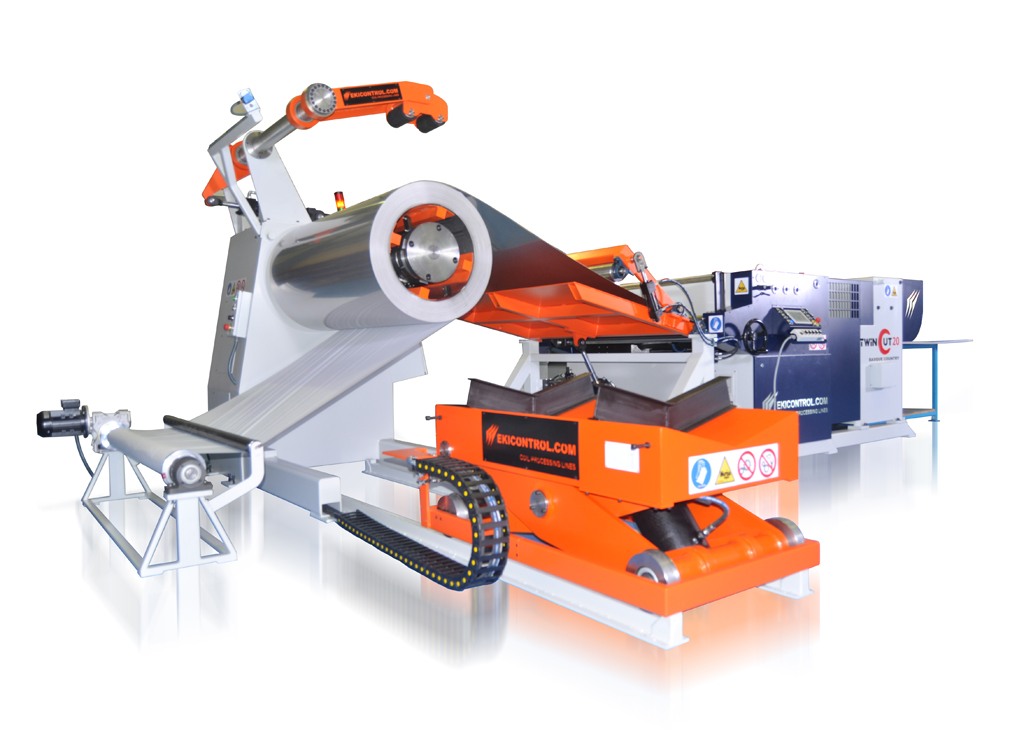

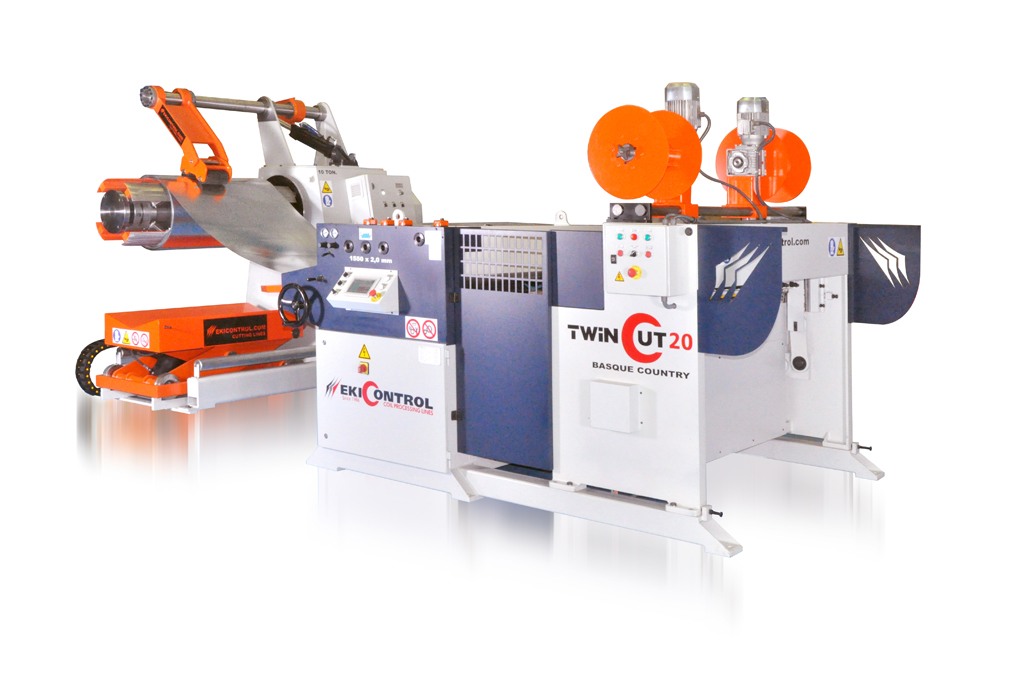

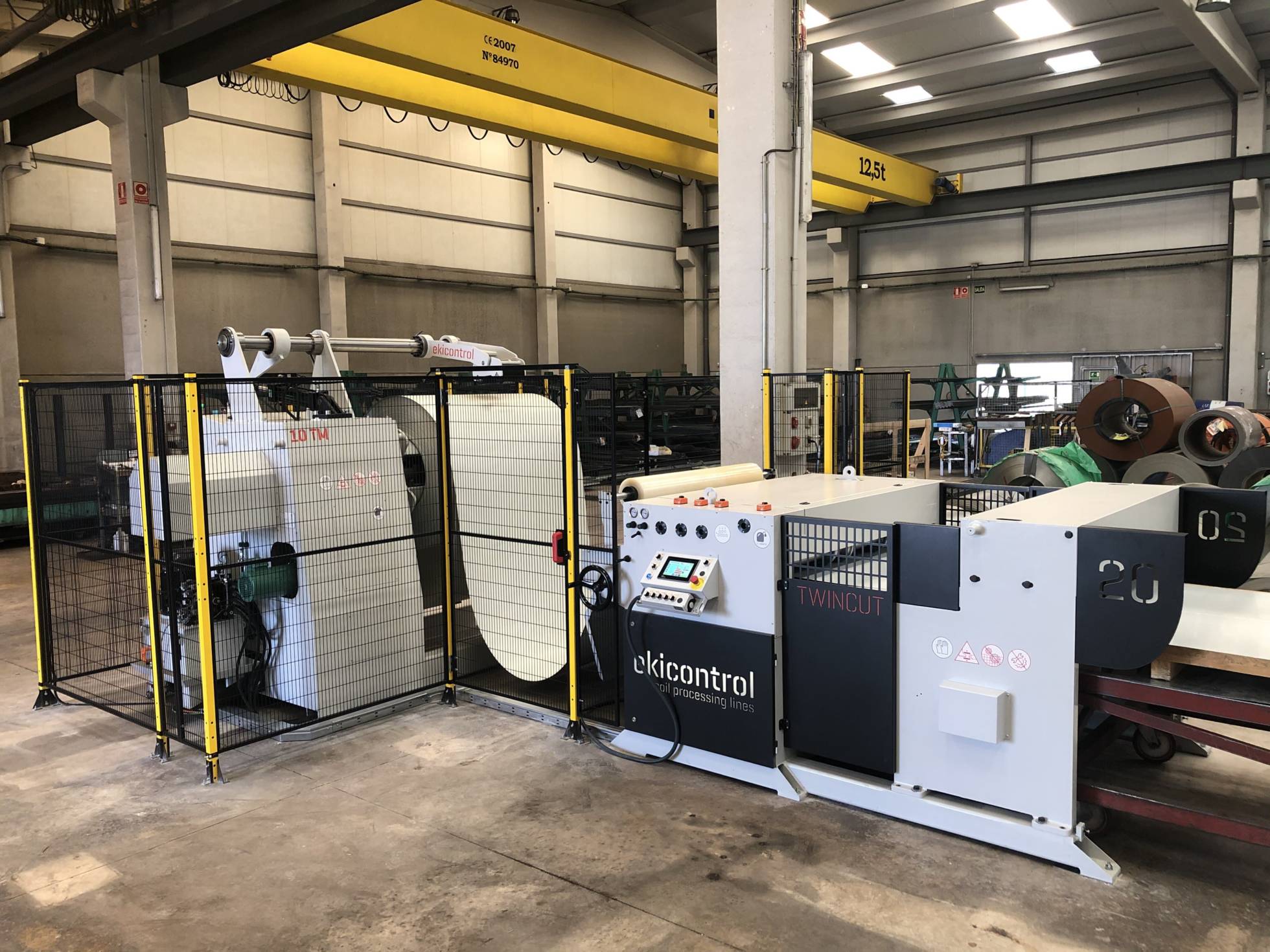

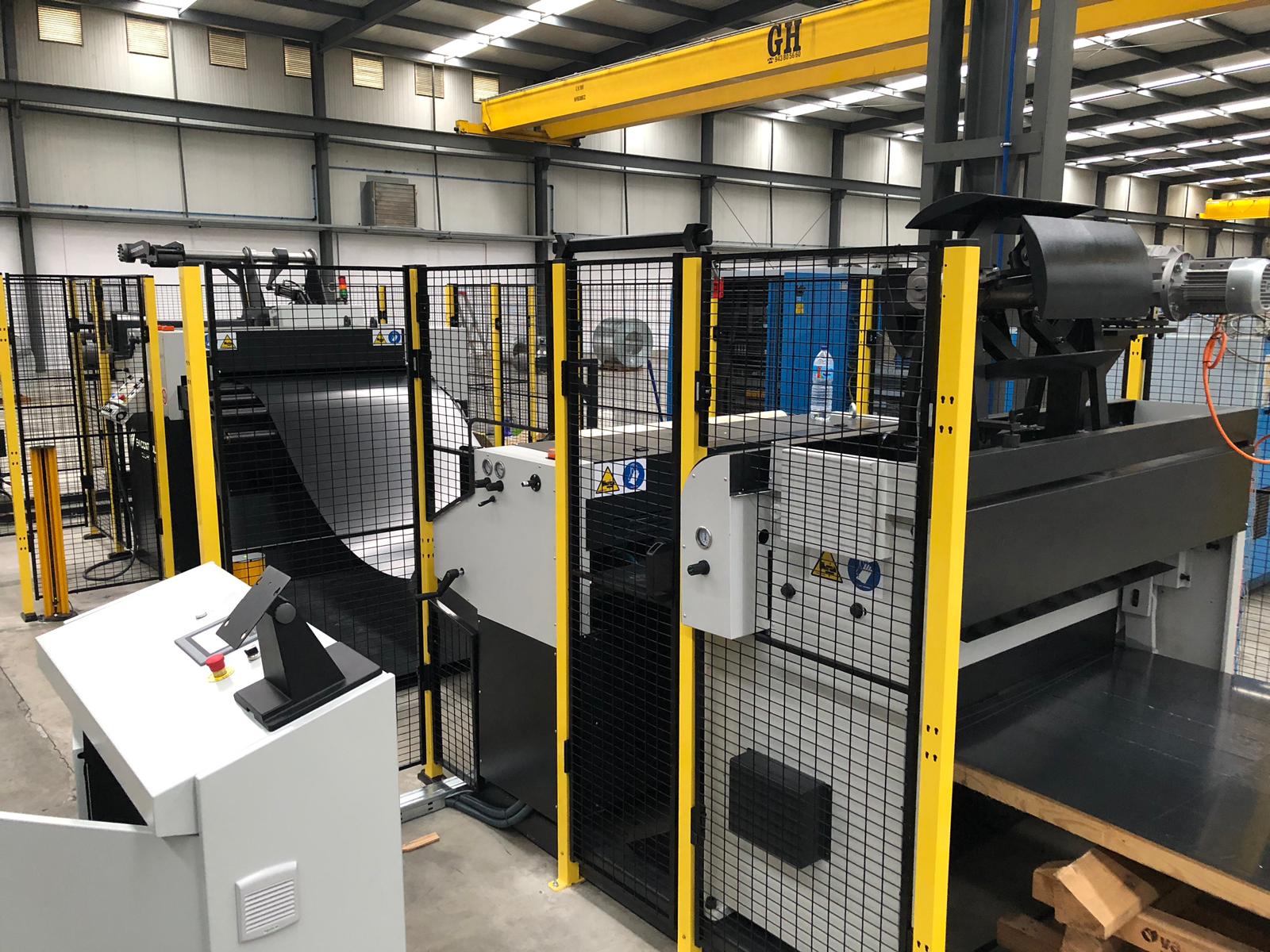

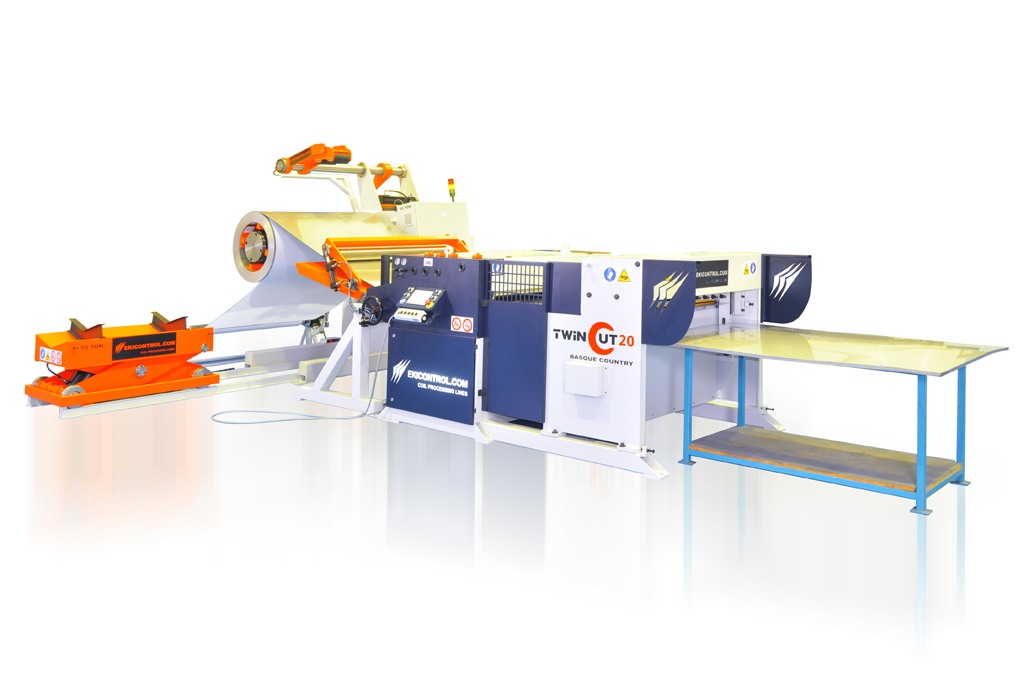

Photos and videos

Customer Testimonials

“Before without cutting line, we had the industrial pavilion full of sheet metal formats everywhere. Now the coils are stored occupying a much smaller space and are kept protected from blows, abuse, etc. »

«We have reduced to 1 third the time to download formats to reels and we use fewer people and elements for a quality download»

“Since we use reels instead of formats, we have much less waste. The waste also implied a place to store it, a time and staff to store it and a time to load it into the scrap truck »

«Now we can make more effective purchases and save money by purchasing reels since there are no cutting or packaging processes involved.»

«The use of coils has allowed us to change the chip, and unify thicknesses and materials, thus being more productive, efficient in handling and managing materials and even having greater purchasing power»

«Before we always lacked a format of x measure or thickness, and we had to order a minimum of 3000 kg, now with the coil, it is simpler and it is always there, available for the length you need»

«The handling of the sheet is very elaborate, you have to use elements and people to maintain its quality without damaging it, with the coil to reduce handling, a single person can do it and directly go to the following processes»
«We do not understand how we have taken so long to buy a cutting line»
«It always seemed to us that another machine was going to be more productive than the cutting line, and we were wrong»
«Not depending so much on the service center gives us freedom to act and make decisions»
«Thanks to having the slitting line, I bought about 100 tons of coil from a company that needed to sell at a fantastic price»
«Before we cut everything with shears, and we have gained in health, the workers were very fatigued by the weight of the sheet metal and then pick it up from the ground by the back of the shear»
«Energy consumption has dropped considerably, the cutting line consumes very little to cut 1 sheet, when before we used the forklift or crane, the power of the shear, or the punching machine …»

Maintenance

Tailor-made maintenance solutions

At EKICONTROL we offer machinery maintenance, including regular assistance to verify equipment efficiency and ensure continued productivity.

At the same time, guidance is provided to the customer’s staff to keep the equipment in the best working conditions, and to be able to analyze all the improvement options that can be incorporated into the equipment to achieve higher performance and production.

Maintenance Preventive Preventive + Corrective Preventive + Corrective + Warranty extention
Yearly preventive inspections
Detailed report of the inspection
Discount in corrective actions of the incidents detected during the inspection 100% free
Discount on parts replacement, during the contract period 20% Discount in parts to be replaced 50% Discount in parts to be replaced 100% Discount in parts to be replaced: Replacement of shears and separators, cut to length shears, gears, oils, filters.
Operators training for the efficient use of equipment.
Labour included during the contract period
Travel and accommodation expenses included
Annual replacement of all key parts, at no extra cost

Frequently asked questions

Se aconsejan hasta 3 cuchillas más como mucho, aunque hay clientes que han colocado hasta 5 más.

Captura de pantalla 2021 02 10 a las 18.11.26

Los enrolladores de retales sirven para enrollar el borde de la chapa que se ha saneado. Así facilita el enrollado para su posterior desecho.

Captura de pantalla 2021 02 10 a las 17.49.53

Entre otros, aluminio, galvanizado, prelacado e Inoxidable.

CHAPA Y BOBINA GALVANIZADA

En la TWINCUT20 este proceso lo realiza el operario variando la penetración de los rodillos superiores de enderezado.

Captura de pantalla 2021 02 10 a las 17.31.26

Entramos dentro de los parámetros de la normativa europea.

IMG 8417

Sí, hasta un máximo de 1550 mm.

Captura de pantalla 2021 02 10 a las 17.57.14

Normalmente no, pero cuando se van procesar materiales más delicados, como el inoxidable, es necesario limpiar los rodillos. Esta limpieza la realiza el operario de manera manual como mantenimiento.
